06 / 10Refrigerant piping

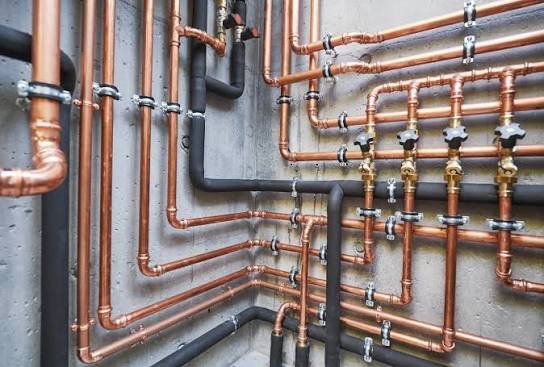

AC and VRF copper pipe supplier and installer in Lahore.

The copper piping is what carries refrigerant between the outdoor and indoor units, so it decides how well an AC cools and how long it lasts. Zahid Brothers is a copper pipe supplier and installer: we supply the pipe and install copper piping that is correctly sized, brazed with nitrogen, fully insulated, pressure tested and vacuumed before the system starts. We take everything from a single split AC to a full VRF building, in Lahore and across Punjab.

Book a site survey or call 0334-8448441.

Experience
25+ years
What we do
Supply and install copper piping
Jobs
Single split ACs to full VRF projects
Every job
Nitrogen brazing, insulation, pressure test, vacuum
Coverage
Lahore and across Punjab
Pipe types

Copper pipe types we supply and install.

  • 01

    Soft copper coil

    Flexible pipe that bends around corners with fewer joints. Used for most split AC and smaller VRF branch lines.

  • 02

    Hard copper pipe

    Straight, rigid lengths for long, neat runs and larger pipe sizes, such as VRF main lines along risers and ceilings.

  • 03

    Pre-insulated pipe

    Copper pipe that comes with its insulation already fitted, which saves time on site and keeps the insulation even along the whole run.

01Soft copper coil02Hard copper pipe03Pre-insulated pipe
Done properly

What goes into good refrigerant piping?

  • 01

    Pipe sizes and lengths follow the AC or VRF maker's guide for that unit, so the system gets the refrigerant flow it was designed for.

  • 02

    Nitrogen flows through the pipe while each joint is brazed, so no black scale forms inside.

  • 03

    Both lines are insulated end to end, so the pipes don't sweat and drip, and cooling isn't lost on the way.

  • 04

    We fill the finished pipework with nitrogen under pressure and check that it holds, so leaks are found before any refrigerant goes in.

  • 05

    We pull a vacuum on the lines to remove air and moisture, which would otherwise harm the compressor and cut cooling.

Inside the pipe

Brazed with nitrogen vs without.

Brazed with nitrogenBrazed without nitrogen
Inside the pipeClean copperBlack scale (oxide) on the inner wall
Over timeNothing loose in the systemFlakes break off and travel with the refrigerant
Effect on the ACValves and filters stay clearFlakes can block valves and filters and wear the compressor
Best forEvery AC and VRF systemNot recommended
VRF

VRF piping installation.

A VRF system runs one set of copper refrigerant lines through the whole building, branching to each floor and room through refnets and branch selectors. The pipe sizes change along the run, and every joint has to be right, because one leak affects the whole system. We plan the pipe routes with the VRF layout, then braze, insulate, pressure test and vacuum the full network before start-up. See our VRF systems page for the systems we supply and install.

Repairs

Replacing old or leaking AC pipes.

If an AC keeps losing gas, cools poorly, or its pipes are sweating and dripping, the copper piping is often the cause. We check the lines, find the leak, and repair or replace the old pipes, then pressure test and vacuum them before the system is charged again.

Job sizes

From a single split AC to full projects.

Every AC system depends on its piping, so we take jobs of every size:

  • 01

    Split ACs:new installations or replacing old pipes.

  • 02

    Ducted and cassette units:longer runs above false ceilings.

  • 03

    VRF systems:full refrigerant pipe networks for offices, hotels and large homes.

  • 04

    Cold storage:refrigerant piping for chiller and freezer rooms.

Buying AC copper pipe only?

If you only need the pipe, you can buy AC copper pipe from our eStore, with delivery across Pakistan.

OUR PROCESS

From site visit to after-sales support.

  1. 01

    Site visit:we check the units, where the pipes will run and how long they need to be.

  2. 02

    Pipe plan:pipe sizes and routes chosen to match the AC or VRF maker's guide.

  3. 03

    Installation:copper piping fitted, brazed with nitrogen and insulated.

  4. 04

    Pressure test and vacuum:leaks checked under nitrogen pressure, then air and moisture removed.

  5. 05

    Start-up:the system is charged and tested running.

  6. 06

    After-sales support:maintenance and repairs whenever you need them.

FAQ

Copper piping questions we often get.

Ask us on WhatsApp →

It depends on the unit's capacity and the length of the pipe run. Each AC and VRF maker publishes the pipe sizes for its units, and we follow that guide for every job.

Without nitrogen, brazing leaves black scale inside the pipe. The flakes can travel through the system and block valves and filters or wear the compressor. Nitrogen keeps the inside of the pipe clean.

Yes. Every installation is pressure tested with nitrogen and vacuumed before the system is charged.

Sometimes. If the old pipes are the right size, in good condition and pass a pressure test, they may be reused. If they leak, are the wrong size or are badly insulated, we recommend replacing them.

Uninsulated pipes sweat and drip water on walls and ceilings, and the refrigerant warms up before it reaches the room, so the AC cools less.

Yes. We supply the copper pipe and insulation for the job and install it, so one team is responsible for the whole pipework.

Yes. We take everything from piping for one split AC to full VRF and commercial projects.

Yes. Our office is on Main College Road, near Butt Chowk, Township, Lahore, and we work across Punjab.

You can order AC copper pipe on our eStore, with delivery across Pakistan.

Need copper piping installed or replaced?

Tell us about your AC or project. We'll visit your site, check the pipe routes and do the job properly from the first joint to start-up. Book a site survey or call 0334-8448441.
